Description

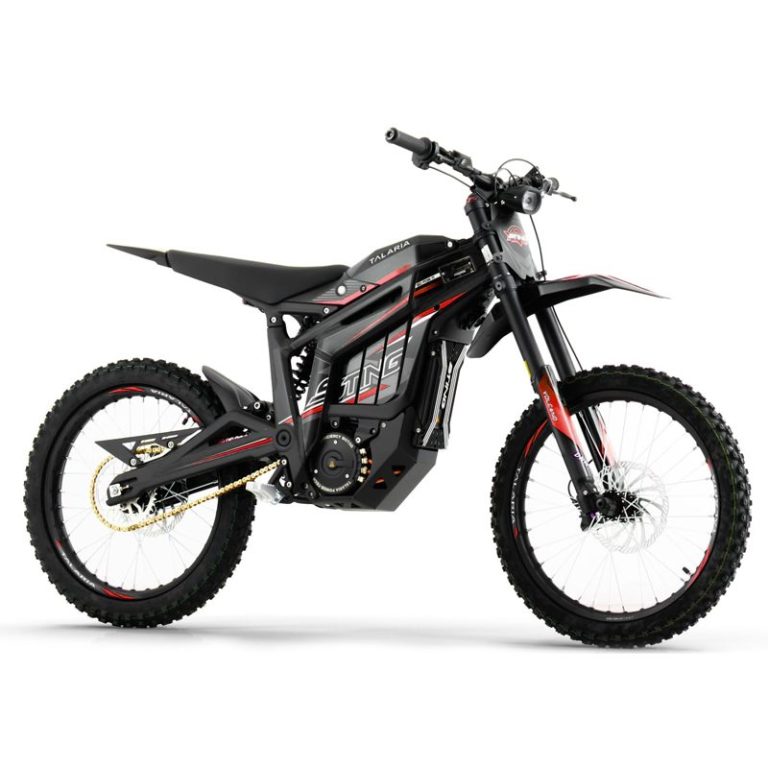

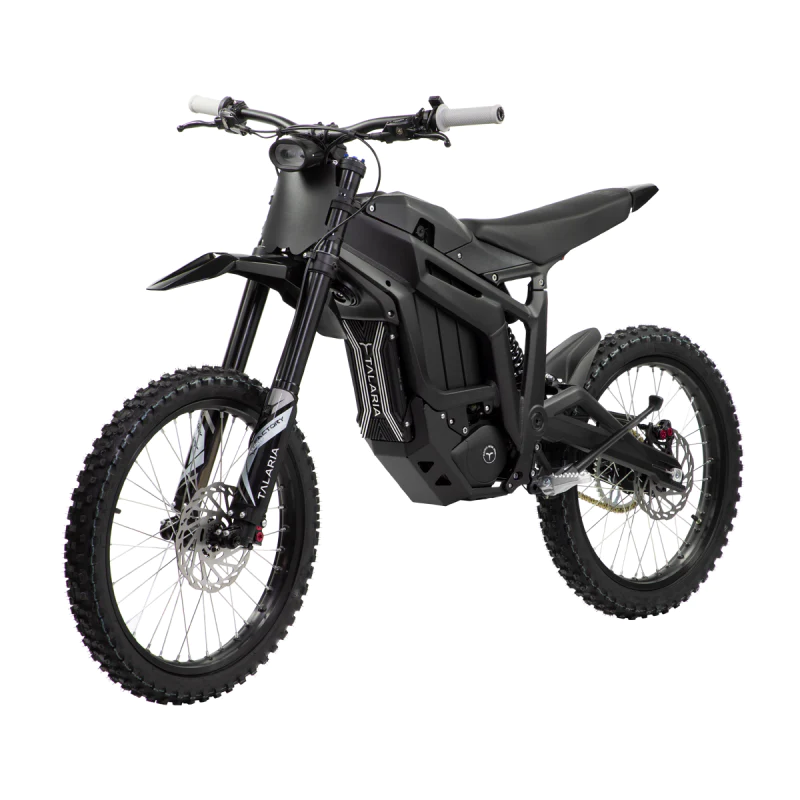

Talaria Sting MX3

General Information

• Model: Talaria Sting MX3

• Frame Material: 6061 T4 & T6 aluminum alloy

• Frame Construction: High-pressure forged aluminum

• Finish: Anodized coating

• Headlight: LED

• Front Suspension: Inverted hydraulic forks (adjustable)

• Rear Suspension: Hydraulic mono-shock (off-road tuned)

• Wheel Size: 19” front / 19” rear

• Tires:

  • Front: 70/100-19

  • Rear: 80/100-19

---

Weight & Dimensions

• Net Weight (with battery): ~63 kg (139 lbs)

• Battery Weight: ~12.8 kg (28 lbs)

• Seat Height: ~870 mm (34.2”)

• Wheelbase: ~1225 mm (48.2”)

• Ground Clearance: ~280 mm

• Overall Dimensions: ~1850 × 770 × 1075 mm

• Handlebar Width: ~760 mm

---

Battery System

• Battery Type: Lithium-ion (removable)

• Voltage: 60V

• Capacity: 38.4Ah

• Energy Capacity: ~2,280 Wh (2.28 kWh)

• Battery Cells: High-density 21700 cells

• BMS: Smart Battery Management System

• Charging Time: ~3–4 hours

---

Motor & Controller

• Motor Type: Mid-mounted PMSM (Permanent Magnet Synchronous Motor)

• Motor Cooling: Air-cooled

• Motor Weight: ~7 kg

• Controller Type: FOC (Field-Oriented Control)

• Controller Efficiency: ~92%

---

Power & Performance

• Nominal Power: ~3,000 W

• Peak Power: ~6,000 W

• Nominal Torque (Motor): ~5.7 Nm

• Peak Torque (Rear Wheel): ~280–300 Nm (gear-reduced)

• Top Speed: ~75 km/h (47 mph) – varies by setup

• Range:

  • Eco riding: up to 70–100 km (43–62 miles)

  • Aggressive riding: reduced range depending on terrain

---

Drivetrain

• Primary Drive: Internal gearbox

• Final Drive: Chain

• Gear Ratio Options:

  • ~8.35 (44T sprocket)

  • ~9.18 (48T sprocket)

---

Braking System

• Front Brake: Hydraulic disc

• Rear Brake: Hydraulic disc

• Brake Control: Strong linear braking with minimal fade

---

Electronics & Display

• Display Type: Digital OLED display

• Display Information:

  • Speed

  • Battery level

  • Voltage

  • Odometer

  • Regenerative braking level

• Regenerative Braking: Adjustable (multi-level)

---

Riding Characteristics

• Instant electric torque

• Smooth throttle response

• Quiet operation compared to gas bikes

• Excellent low-speed control for trail riding

---

Maintenance

• No fuel required

• No oil changes

• No spark plugs

• Minimal drivetrain maintenance

• Routine checks: chain, brakes, tires

---

Intended Use

⚠️ Off-road use only
Not street-legal in most regions without modification and registration.

---

What’s Included

• Talaria Sting MX3 electric dirt bike

• 60V lithium battery

• Battery charger

• Tool kit

• User manual
